FLEXIBLE HOSE ASSEMBLIES

Flexible hose assemblies can greatly improve the ease of use of an injection quill.  By providing a flexible connection between the quill and the chemical feed line, the assembly avoids complicated and burdensome rigid pipe setups.

Downloads

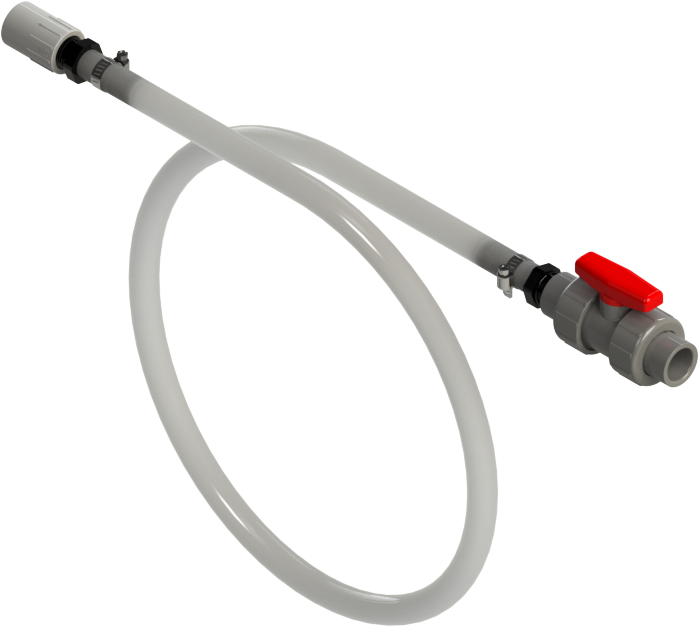

FHA (View)

  • Clear braided PVC reinforced vinyl hose
  • Hose sizes 1/2" - 1-1/2"
  • True union ball valve inlet
  • FNPTxFNPT coupler end connection
render-fha-loop

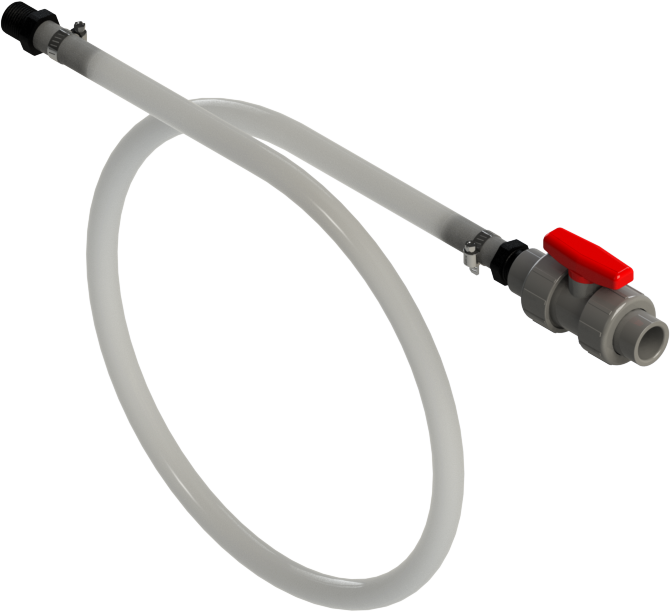

FHB (View)

  • Clear braided PVC reinforced vinyl hose
  • Hose sizes 1/2" - 1-1/2"
  • True union ball valve inlet
  • FNPTxFNPT coupler end connection
render-fhb-loop

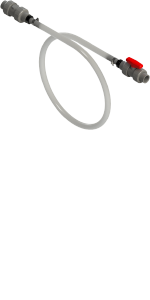

FHC (View)

  • Clear braided PVC reinforced vinyl hose
  • Hose sizes 3/4" - 1-1/2"
  • True union ball valve inlet
  • True union check valve outlet (FNPT or Socket) end connection
fhc-loop-render-150x300

FTA (View)

  • PVDF, HDPE, and PP material options
  • 1/2" O.D. tubing
  • True union ball valve inlet
  • FNPT x O.D. Tube Fitting end connection
fta-050-render-120x500

FHA

render-fha-2

ModelMaterialSizeLengthInletSeal TypeMax. Working Pressure (psi @ 70°F)
FHA-CLR-050-P-VClear Braided PVC Reinforced Vinyl1/2"6'PVC BVFKM200
FHA-CLR-050-P-EClear Braided PVC Reinforced Vinyl1/2"6'PVC BVEPDM200
FHA-CLR-050-C-VClear Braided PVC Reinforced Vinyl1/2"6'CPVC BVFKM200
FHA-CLR-050-C-EClear Braided PVC Reinforced Vinyl1/2"6'CPVC BVEPDM200
FHA-CLR-075-P-VClear Braided PVC Reinforced Vinyl3/4"8'PVC BVFKM150
FHA-CLR-075-P-EClear Braided PVC Reinforced Vinyl3/4"8'PVC BVEPDM150
FHA-CLR-075-C-VClear Braided PVC Reinforced Vinyl3/4"8'CPVC BVFKM150
FHA-CLR-075-C-EClear Braided PVC Reinforced Vinyl3/4"8'CPVC BVEPDM150
FHA-CLR-100-P-VClear Braided PVC Reinforced Vinyl1"8'PVC BVFKM150
FHA-CLR-100-P-EClear Braided PVC Reinforced Vinyl1"8'PVC BVEPDM150
FHA-CLR-100-C-VClear Braided PVC Reinforced Vinyl1"8'CPVC BVFKM150
FHA-CLR-100-C-EClear Braided PVC Reinforced Vinyl1"8'CPVC BVEPDM150
FHA-CLR-150-P-VClear Braided PVC Reinforced Vinyl1-1/2"10'PVC BVFKM100
FHA-CLR-150-P-EClear Braided PVC Reinforced Vinyl1-1/2"10'PVC BVEPDM100
FHA-CLR-150-C-VClear Braided PVC Reinforced Vinyl1-1/2"10'CPVC BVFKM100
FHA-CLR-150-C-EClear Braided PVC Reinforced Vinyl1-1/2"10'CPVC BVEPDM100

FHB

Flexible hose with Ball Valve Inlet and Threaded Coupler End Connection

render-fhb-2

ModelMaterialSizeLengthValve MaterialSeal TypeMax. Working Pressure (psi @ 70°F)
FHB-CLR-050-P-VClear Braided PVC Reinforced Vinyl1/2"6'PVCFKM200
FHB-CLR-050-P-EClear Braided PVC Reinforced Vinyl1/2"6'PVCEPDM200
FHB-CLR-050-C-VClear Braided PVC Reinforced Vinyl1/2"6'CPVCFKM200
FHB-CLR-050-C-EClear Braided PVC Reinforced Vinyl1/2"6'CPVCEPDM200
FHB-CLR-075-P-VClear Braided PVC Reinforced Vinyl3/4"8'PVCFKM150
FHB-CLR-075-P-EClear Braided PVC Reinforced Vinyl3/4"8'PVCEPDM150
FHB-CLR-075-C-VClear Braided PVC Reinforced Vinyl3/4"8'CPVCFKM150
FHB-CLR-075-C-EClear Braided PVC Reinforced Vinyl3/4"8'CPVCEPDM150
FHB-CLR-100-P-VClear Braided PVC Reinforced Vinyl1"8'PVCFKM150
FHB-CLR-100-P-EClear Braided PVC Reinforced Vinyl1"8'PVCEPDM150
FHB-CLR-100-C-VClear Braided PVC Reinforced Vinyl1"8'CPVCFKM150
FHB-CLR-100-C-EClear Braided PVC Reinforced Vinyl1"8'CPVCEPDM150
FHB-CLR-150-P-VClear Braided PVC Reinforced Vinyl1-1/2"10'PVCFKM100
FHB-CLR-150-P-EClear Braided PVC Reinforced Vinyl1-1/2"10'PVCEPDM100
FHB-CLR-150-C-VClear Braided PVC Reinforced Vinyl1-1/2"10'CPVCFKM100
FHB-CLR-150-C-EClear Braided PVC Reinforced Vinyl1-1/2"10'CPVCEPDM100

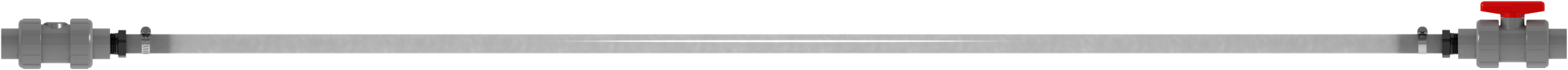

FHC

Flexible hose with Ball Valve Inlet and Threaded Coupler End Connection

render-fhc

ModelMaterialSizeLengthValve MaterialSeal TypeMax. Working Pressure (psi @ 70°F)
FHC-CLR-075-P-VClear Braided PVC Reinforced Vinyl3/4"8'PVCFKM150
FHC-CLR-075-P-EClear Braided PVC Reinforced Vinyl3/4"8'PVCEPDM150
FHC-CLR-075-C-VClear Braided PVC Reinforced Vinyl3/4"8'CPVCFKM150
FHC-CLR-075-C-EClear Braided PVC Reinforced Vinyl3/4"8'CPVCEPDM150
FHC-CLR-100-P-VClear Braided PVC Reinforced Vinyl1"8'PVCFKM150
FHC-CLR-100-P-EClear Braided PVC Reinforced Vinyl1"8'PVCEPDM150
FHC-CLR-100-C-VClear Braided PVC Reinforced Vinyl1"8'CPVCFKM150
FHC-CLR-100-C-EClear Braided PVC Reinforced Vinyl1"8'CPVCEPDM150
FHC-CLR-150-P-VClear Braided PVC Reinforced Vinyl1-1/2"10'PVCFKM100
FHC-CLR-150-P-EClear Braided PVC Reinforced Vinyl1-1/2"10'PVCEPDM100
FHC-CLR-150-C-VClear Braided PVC Reinforced Vinyl1-1/2"10'CPVCFKM100
FHC-CLR-150-C-EClear Braided PVC Reinforced Vinyl1-1/2"10'CPVCEPDM100

FTA

Flexible hose with Ball Valve Inlet and Threaded Coupler End Connection

render-fta-2

ModelMaterialSizeLengthValve MaterialSeal TypeMax. Working Pressure (psi @ 70°F)
FTA-PVDF-050-P-VPVDF Tubing1/2"6'PVCFKM146
FTA-PVDF-050-P-EPVDF Tubing1/2"6'PVCEPDM146
FTA-PVDF-050-C-VPVDF Tubing1/2"6'CPVCFKM146
FTA-PVDF-050-C-EPVDF Tubing1/2"6'CPVCEPDM146
FTA-PVDF-050-K-VPVDF Tubing1/2"6'PVDFFKM146
FTA-PVDF-050-K-EPVDF Tubing1/2"6'PVDFEPDM146
FTA-HDPE-050-P-VHDPE1/2"6'PVCFKM150
FTA-HDPE-050-P-EHDPE1/2"6'PVCEPDM150
FTA-HDPE-050-C-VHDPE1/2"6'CPVCFKM150
FTA-HDPE-050-C-EHDPE1/2"6'CPVCEPDM150
FTA-PP-050-P-VPolypropelene1/2"6'PVCFKM100
FTA-PP-050-P-EPolypropelene1/2"6'PVCEPDM100
FTA-PP-050-C-VPolypropelene1/2"6'CPVCFKM100
FTA-PP-050-C-EPolypropelene1/2"6'CPVCEPDM100
